Seaguide BG Double Foot Guides
Details

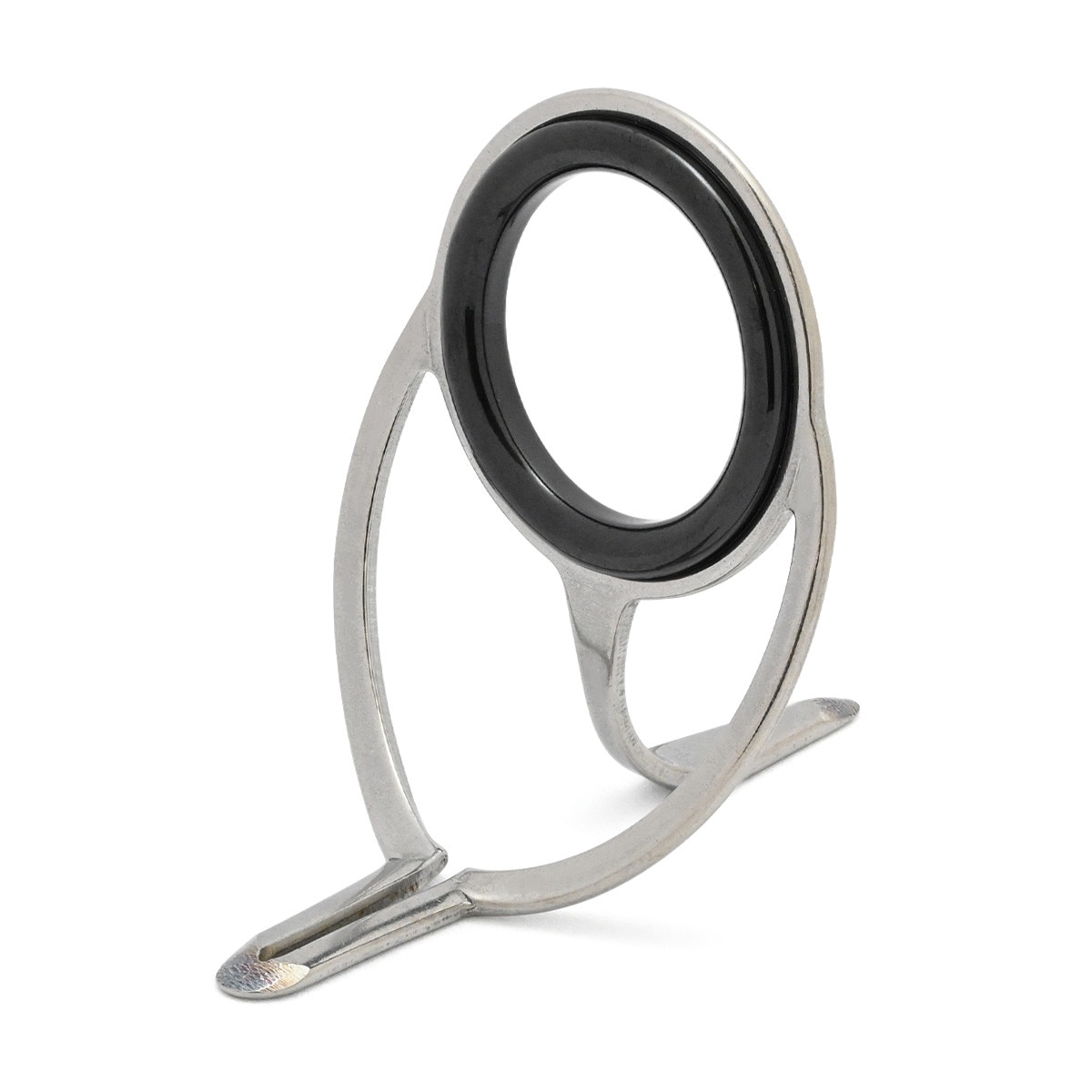

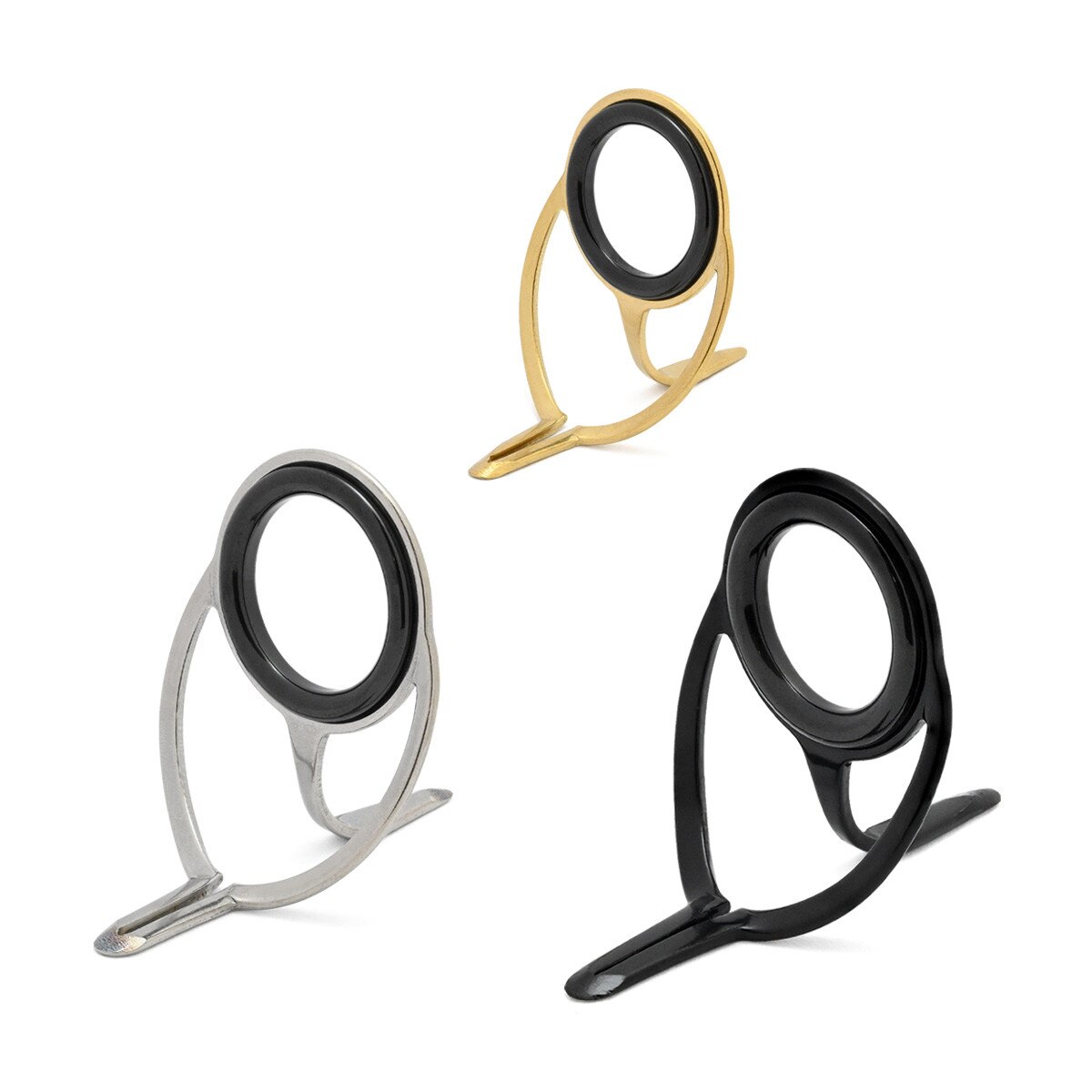

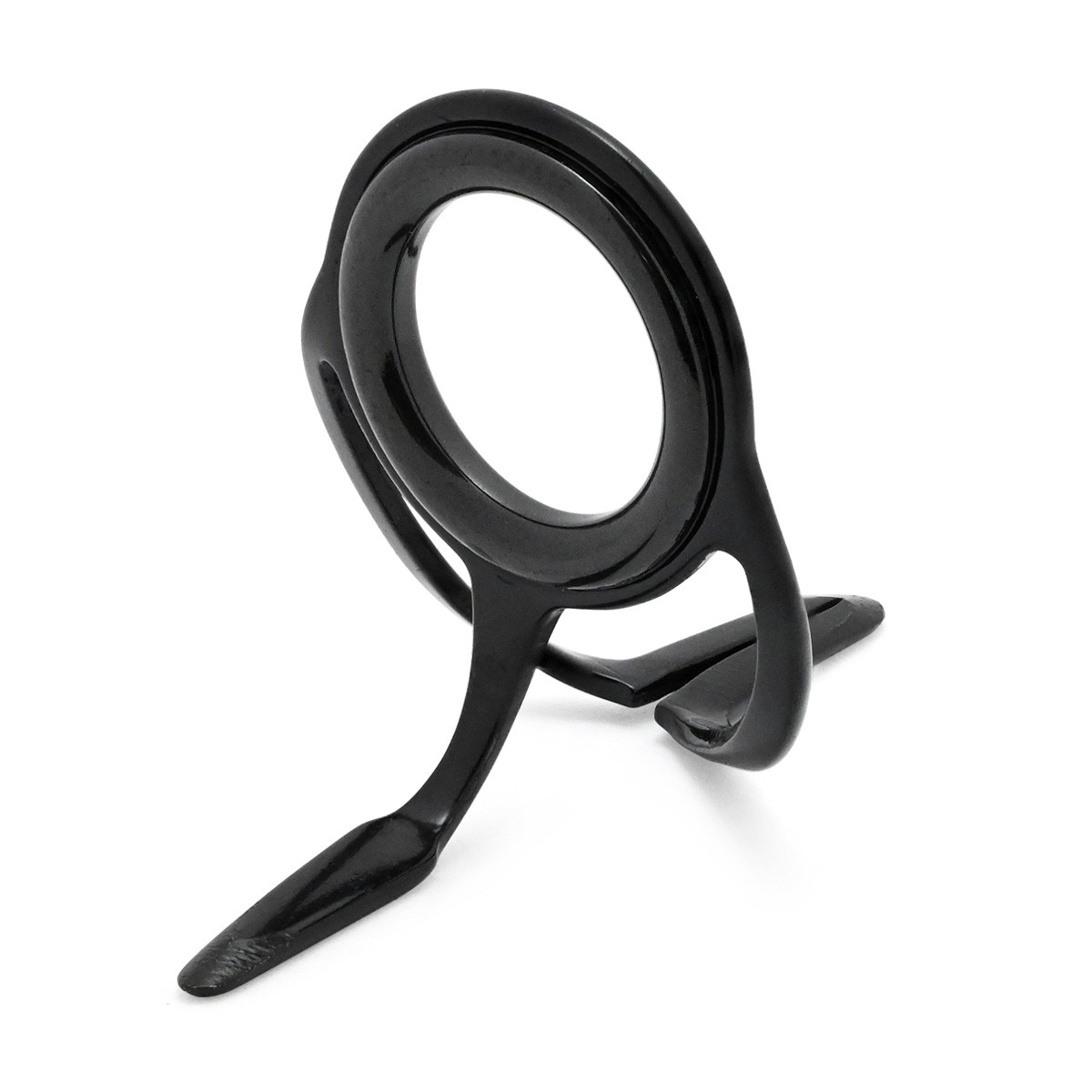

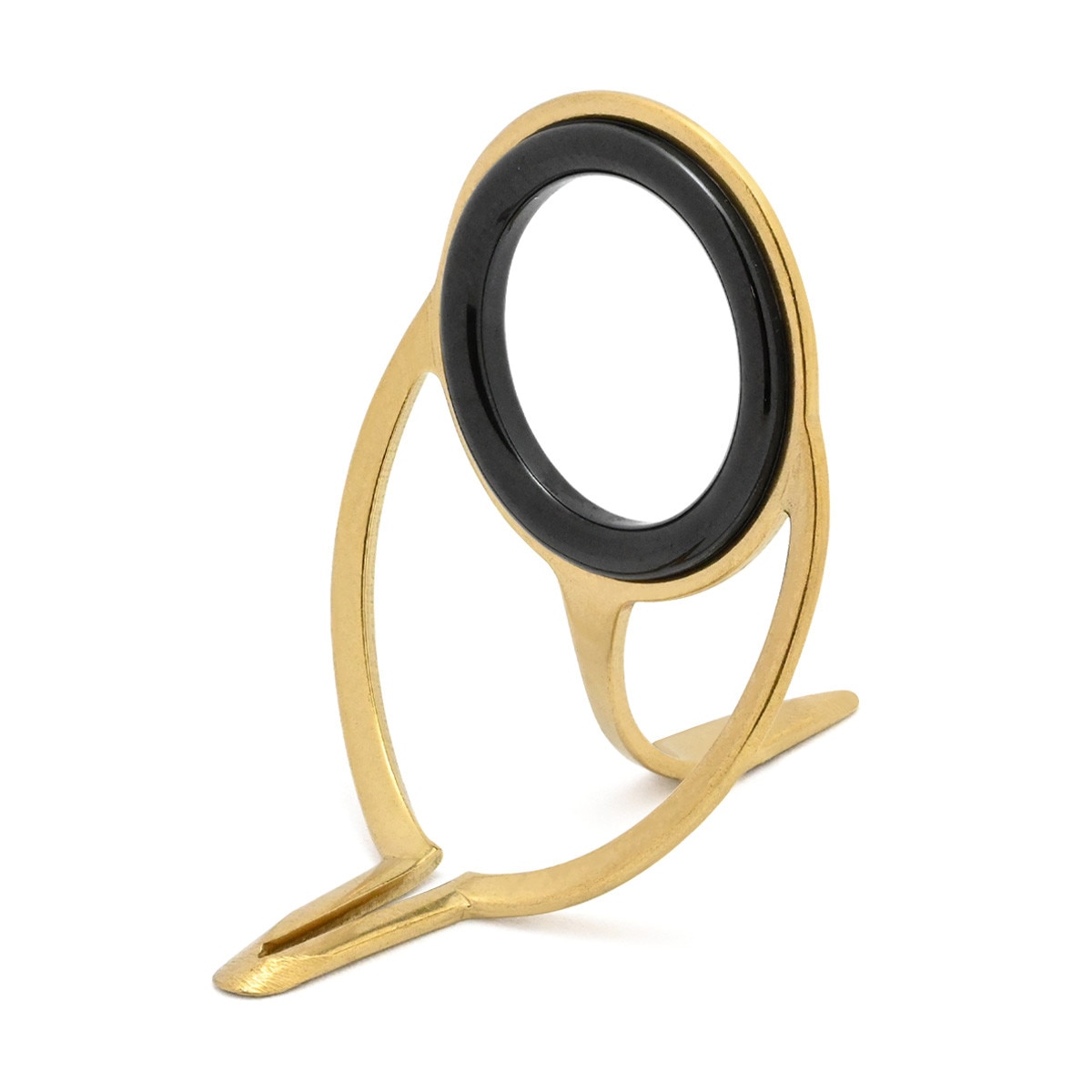

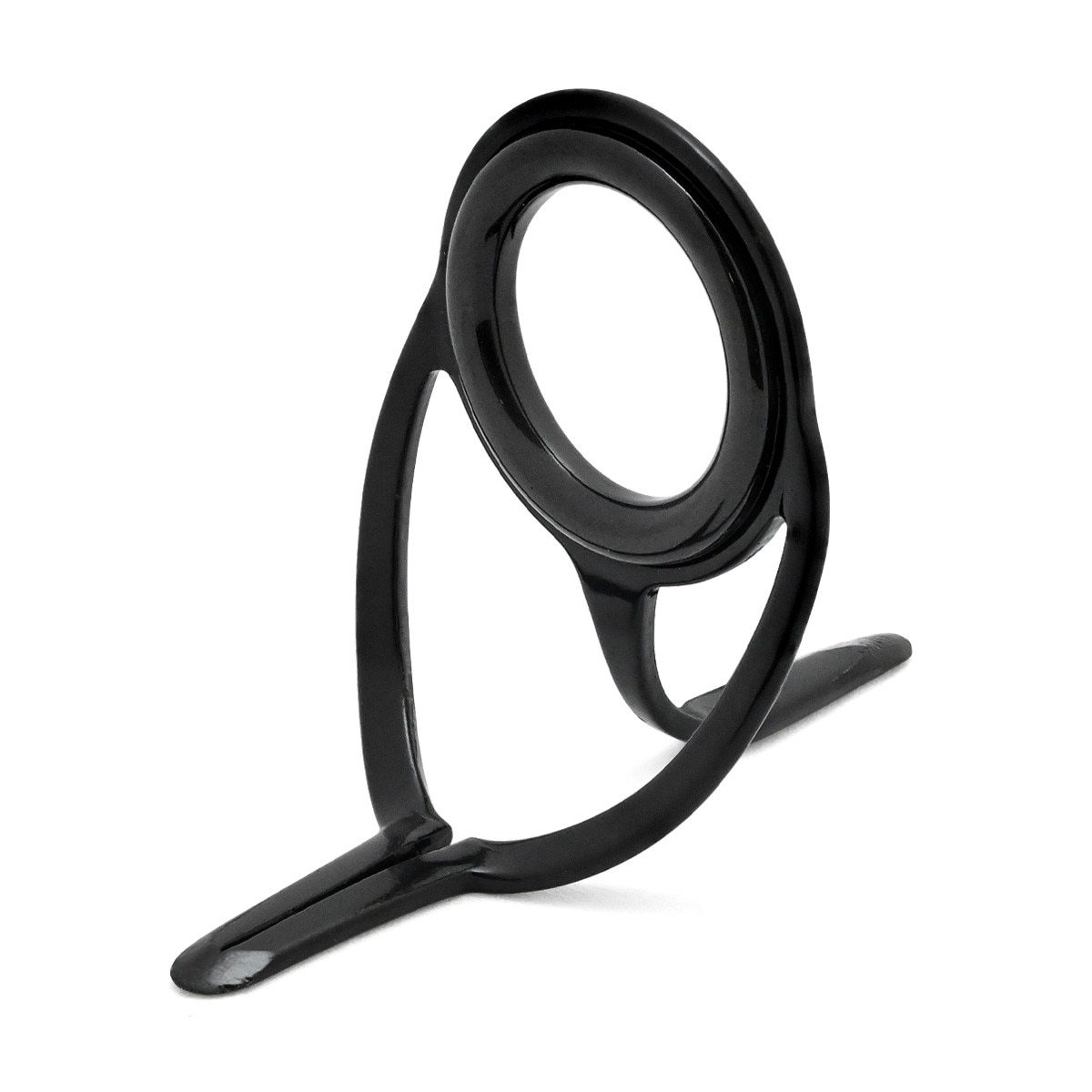

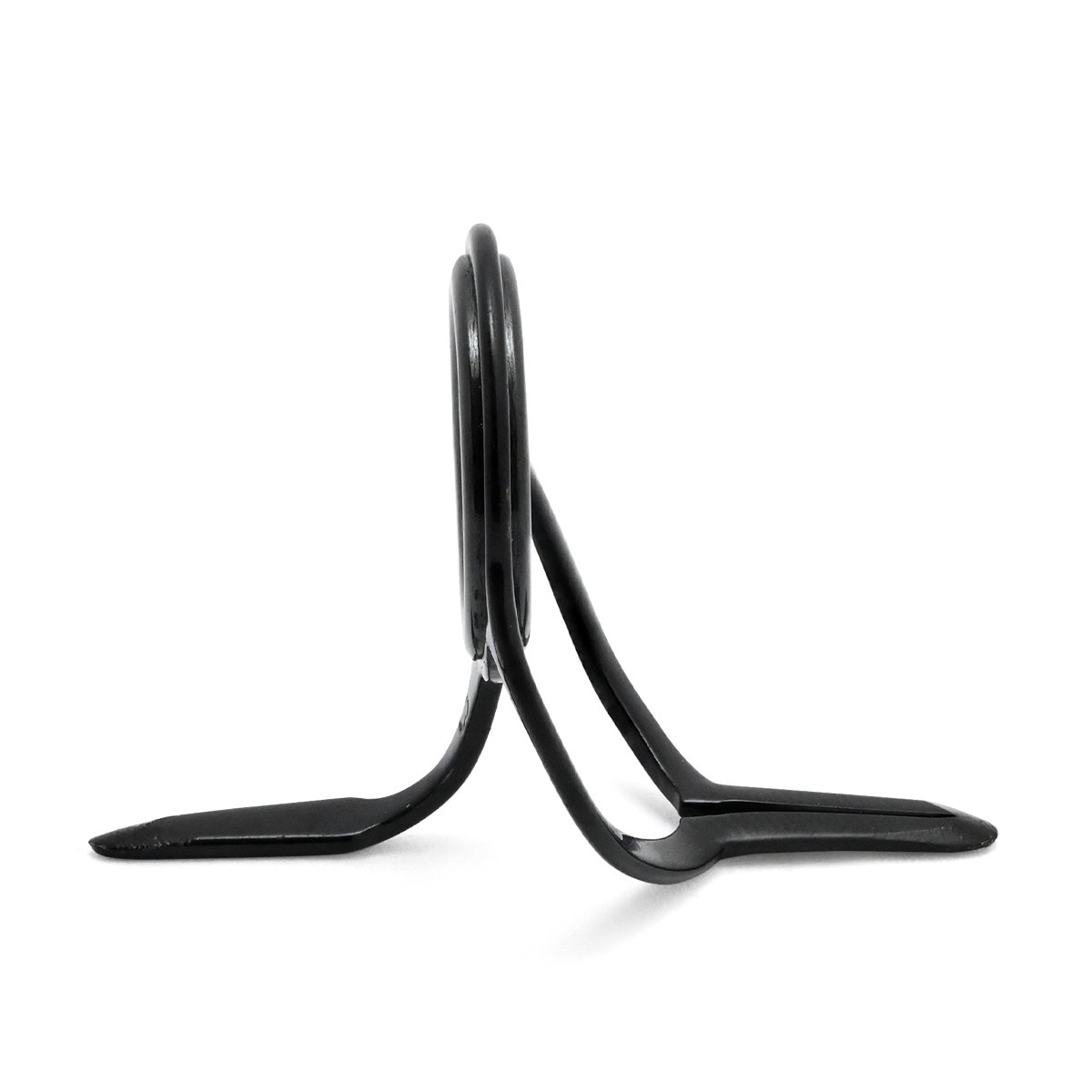

Seaguide BG Double Foot Guides feature a durable SS304 stainless steel frame with hard, superline ready RealA rings. Sizes 16, 12, 10, and 8 are commonly used as stripper guides on fly rods.
Specifications
Size 6 (mm): Foot Length- 6.5 | Total Length- 20.0 | Height-11.5
Size 8 (mm): Foot Length- 7.0 | Total Length- 22.5 | Height- 13.0
Size 10 (mm): Foot Length- 8.0 | Total Length - 26.0 | Height- 16.5
Size 12 (mm): Foot Length- 8.5 | Total Length- 26.5 | Height- 20.0
Size 16 (mm): Foot Length- 10.5 | Total Length- 35.0 | Height- 25.5
Size 20 (mm): Foot Length- 11.5 | Total Length- 40.0 | Height- 31.5
Size 25 (mm): Foot Length- 14.5 | Total Length- 51.0 | Height-39.5
Size 30 (mm): Foot Length- 15.5 | Total Length- 57.5 | Height- 49.0
Size 40 (mm): Foot Length- 17.0 | Total Length- 68.0 | Height- 55.0
Ring Material: RealA
Matching Top: XST
